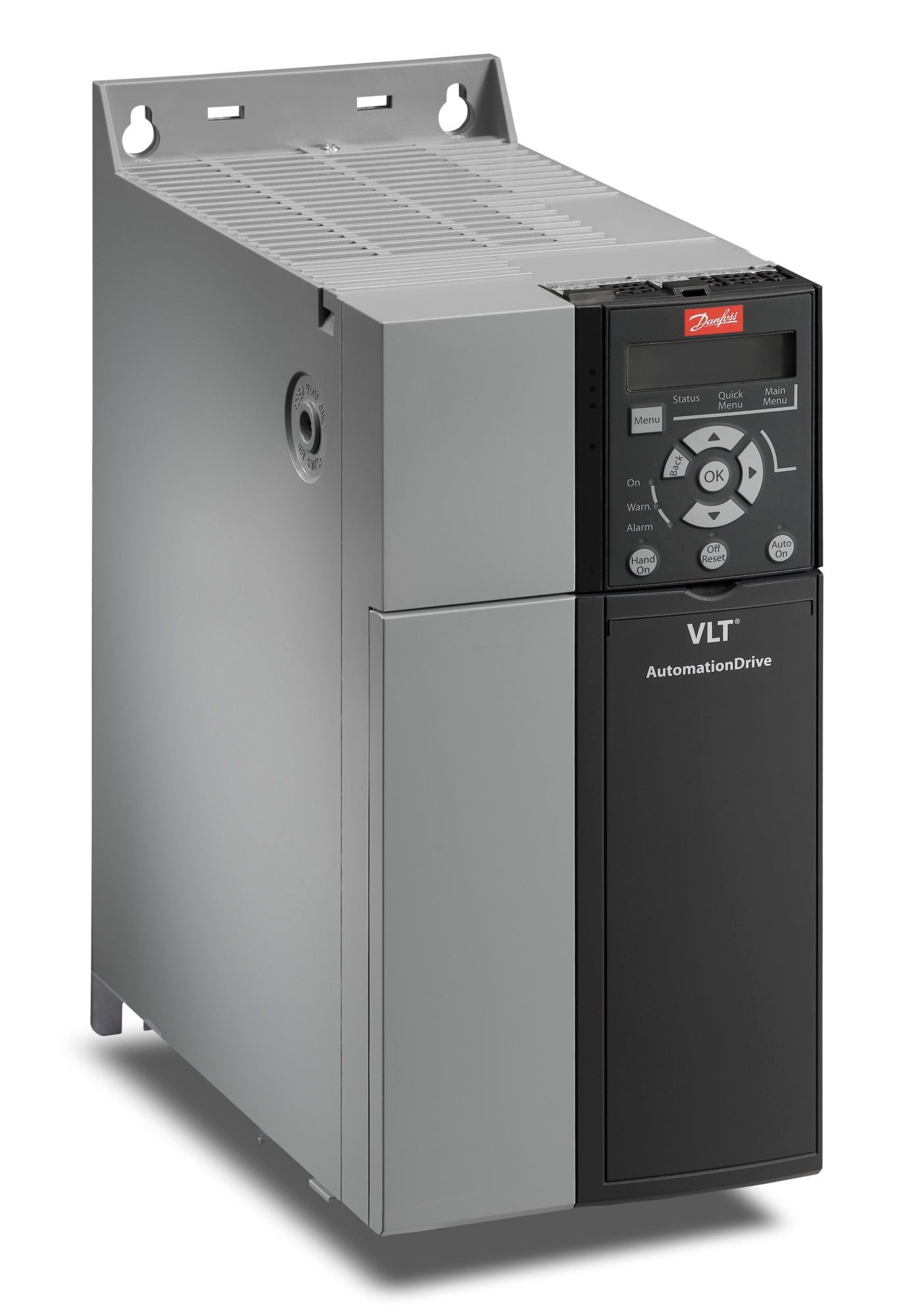

Frequency converter FC-360H55KT4E20H2XXCDXXSXXXXALBX VLT® AutomationDrive FC-(360) 360 55 KW / 75 HP, (T4) 380-480VAC (Three phased), IP20 / Chassis RFI Class A2, (X) No Brake Chopper No Display (No Blind Cover) (C) Coated PCB, Loadsharing Control Card With ProfiNet, (BX) No B Option Frame: J7 Other options according to Model code
Model code: FC-360H55KT4E20H2XXCDXXSXXXXALBX
VLT® AUTOMATIONDRIVE FC 360 SERIES Product View (Switch) GLBL Global (Standard) Product Group FC- VLT® AutomationDrive FC- Series 360 (360) 360 Power H High Overload Power Size 55K 55 KW / 75 HP Voltage T4 (T4) 380-480VAC (Three phased) Enclosure E20 IP20 / Chassis RFI Filter H2 RFI Class A2 Brake & Stop X (X) No Brake Chopper Display X No Display (No Blind Cover) Coating C (C) Coated PCB Mains Option D Loadsharing Adaptation A X Standard Cable Entries Adaptation B X No Adaptation Special Version SXXX Latest release – Std. Software Software Language Pack X Standard Language Pack Control Card AL Control Card With ProfiNet B Option BX (BX) No B Option Frame Size J7 J7 Typecode Part 1 FC-360H55KT4E20H2XXC Typecode Part 2 DXXSXXXXALBX Product Catalog NO_VIEW NO VIEW Calculated Gross Weight [kg] 38.31 Calculated Net Weight [kg] 37.3 Vendor ERR01 Cannot Determine Vendor Recommended Factory ERR01 Cannot Determine Vendor Modelcode01 FC-360H55KT4E20H2XXC Modelcode02 DXXSXXXXALBX Recommended Plant ERR01
